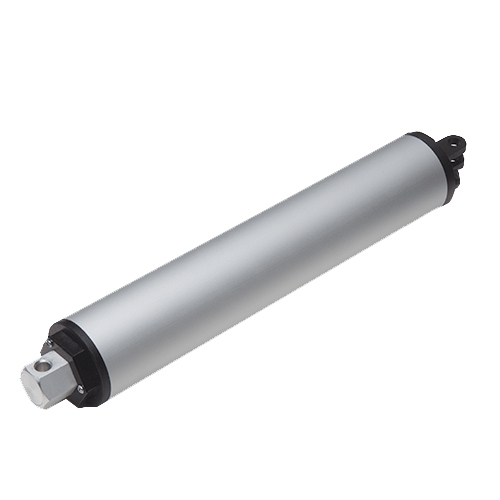

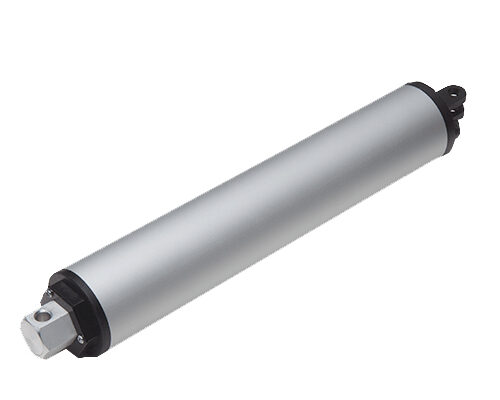

12/24V dc motor ,tubular mini electric Linear Actuator
Parameter:
Load:100-6000N
Speed:3.5-55mm/s
Stroke:0-400mm
IP67,IP67M
Hall Sensor,Over current protection,Limit switch
tubular mini electric Linear Actuator Main features:
. Normal Tempeture range:-5°C to 40°C
. Duty cycle: Max. 10% or 2 minutes in use followed by 18 min.Rest
. Very small dimensions and elegant design
. High efficiency DC permanent magnet industrial motor 12V/24V with planetary gear
. IP54 & IP66 protection class , Waterproof and dust-proof
. Over current circuit protection
. Hall sensors for precision control and positioning
. No load noise: 50dB
.Certified:CE
. Diameter 52mm actuator’s material is aluminum
Technical parameters
| Max.Load(N) | 100 | 300 | 400 | 800 | 1200 | 1800 | 2300 |
| Speed(mm/s) | 30 | 17 | 14 | 7 | 5 | 3 | 2.3 |
| Stroke(mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | Customize |
Q1: When can I get the quotation?
A1: Usually you need to send below information, we will quote within 12 hours after we get it.
1) For customization: material, size, input, Load capacity,quantity, color speed or frequency , etc.
Q2: Can you help with the design?
A2: Yes, we have a professional team having rich experience in linear actuator design and manufacturing.
Just tell us your ideas and we will help to carry our your ideas into perfect linear actuator
Q3: How long can I expect to get the sample?
A4: After you pay the sample freight charge and send us confirmed files, the samples will be ready in 3-7 days.
The samples will be sent to you via express and arrived in 3-5 workdays.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking,
we suggest that you start to inquire two months before the date you would like to get the products at your country.
